Several types of sensing elements such as Pt100, Pt1000, NTC or Ni1000 are available. The an innovative star pressing of the sensor sleeve provides a high protection class IP67 / NEMA 4. All product-specific information is printed all along the cable.
Products

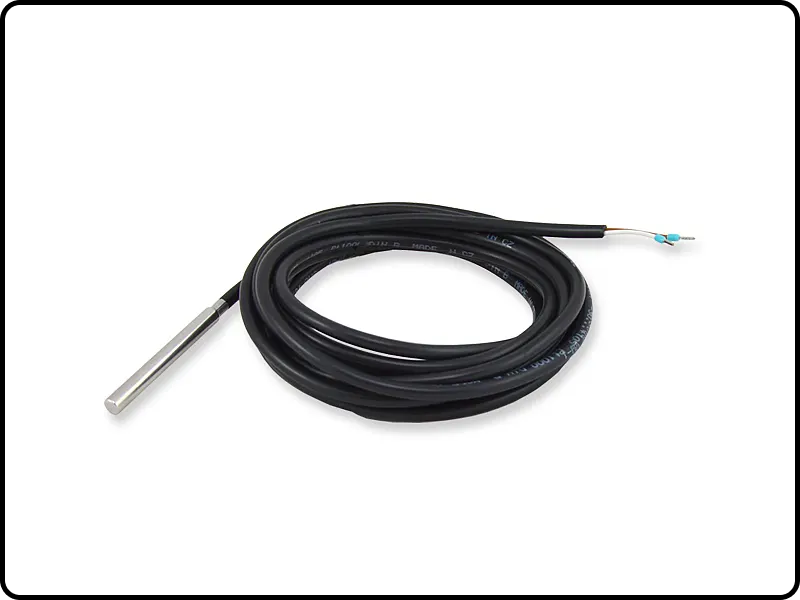

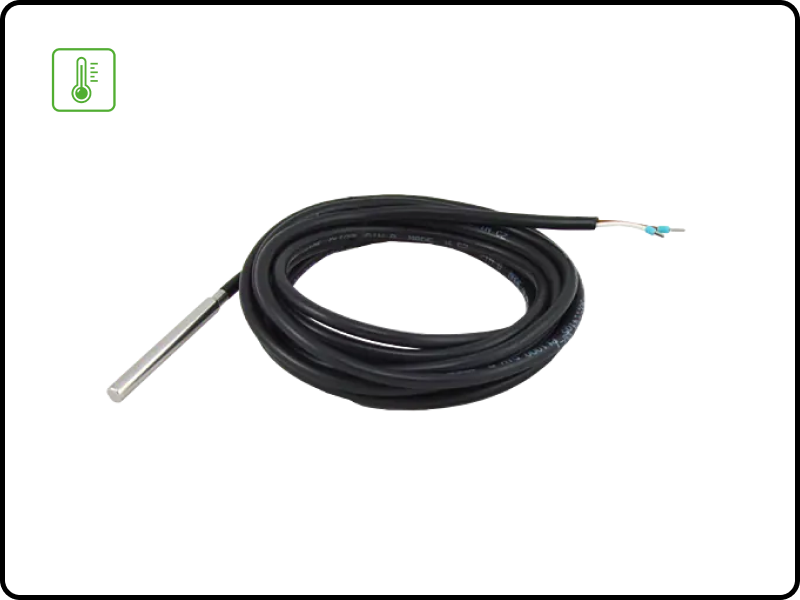

- EE461 – Cable Temperature Sensor

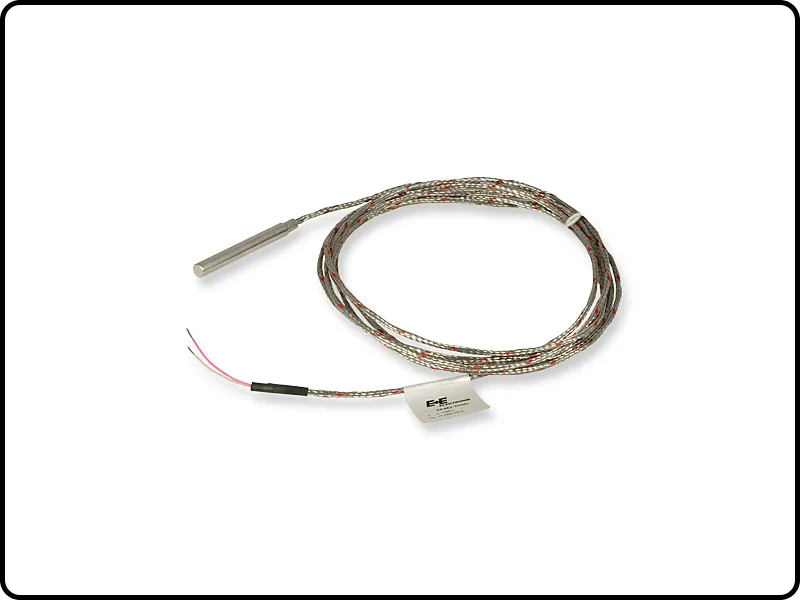

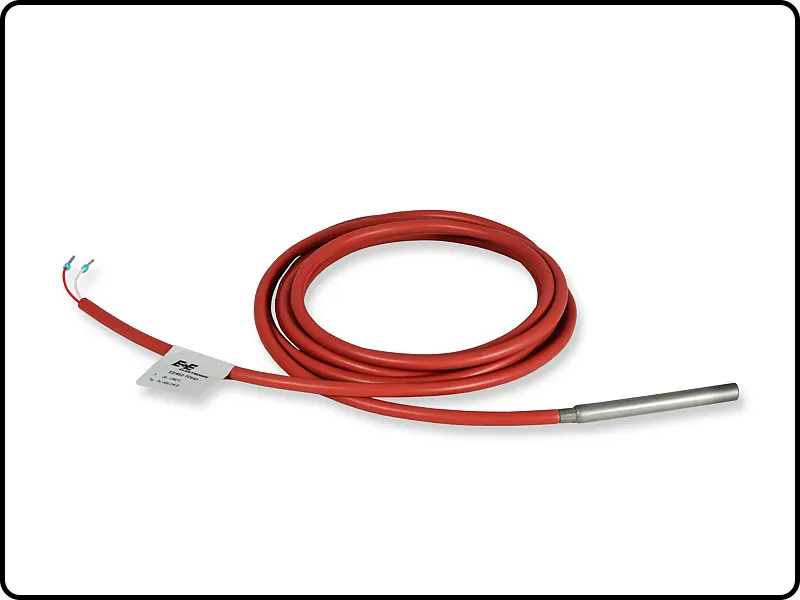

- EE462 – Cable Temperature Sensor
Typical Applications
- Building automation
- Process and climate control
Technical Data
- Operating temperature – EE461-30…105 °C (-22…221 °F)
- Operating temperature – EE462 – Glass fibre0…350 °C (32…662 °F)
- Operating temperature – EE462 – Silicone-60…180 °C (-76…356 °F)
- Protection classIP67 / NEMA 4
- Insulation resistancetyp. > 100 MΩ at 20 °C (68 °F)
Key Features
- High protection class
- Cable labeling
- Various sensing elements and cable lengths
- 2 or 4 wire connection
Datasheet
EE461 Datasheet
EE462 Datasheet
