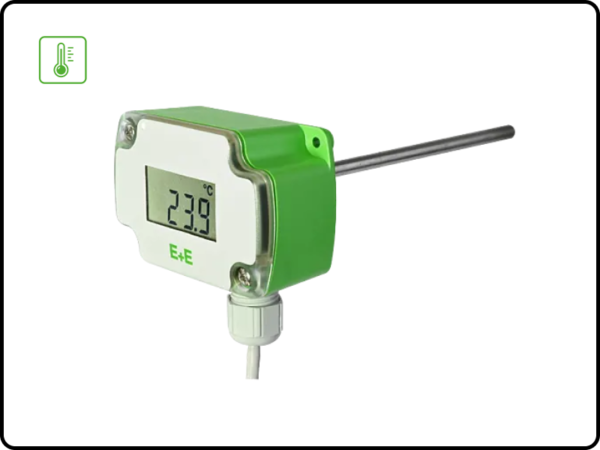

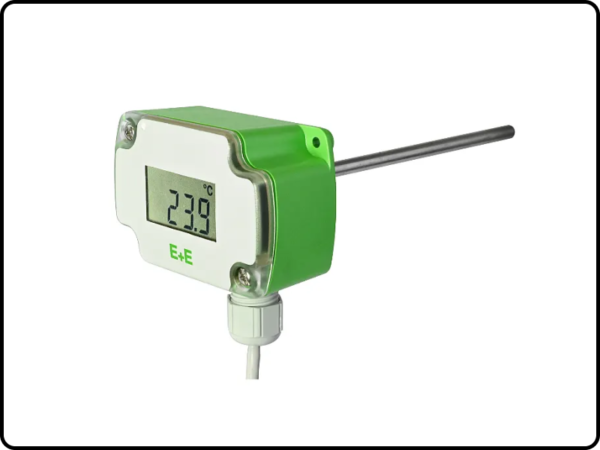

The measured data is available on the voltage or current output, as well as on the RS485 interface with Modbus RTU. Alternatively, the EE431 features a passive output with a wide choice of temperature sensing elements.

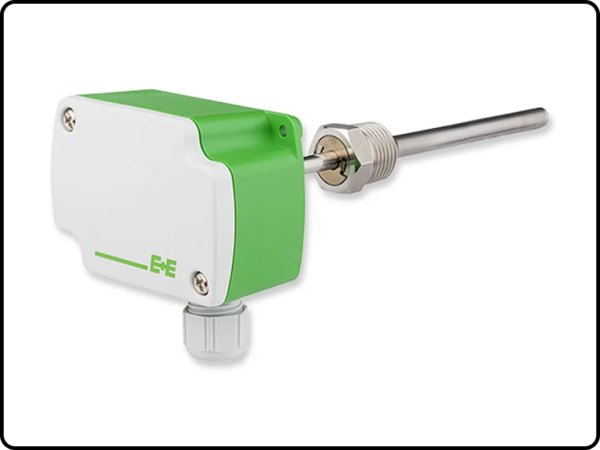

The device can be mounted either with the plastic mounting flange or via external mounting holes at the enclosure. The innovative immersion well is dedicated for measurement in liquids and allows for fast and safe replacement of the sensor. The EE431 with RS485 interface is appropriate for daisy-chain wiring.
An optional adapter and the free EE-PCS Product Configuration Software facilitate the setup and adjustment of the EE431.
Enclosure
- IP65 / NEMA 4X
- External mounting holes
- Bayonet screws

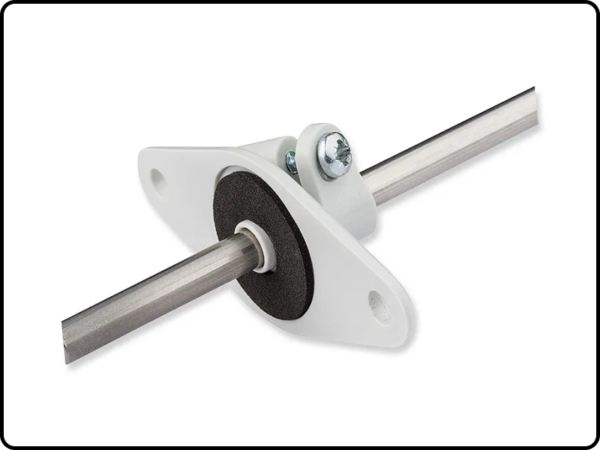

Mounting flange
- Clamp ring
- Special seal

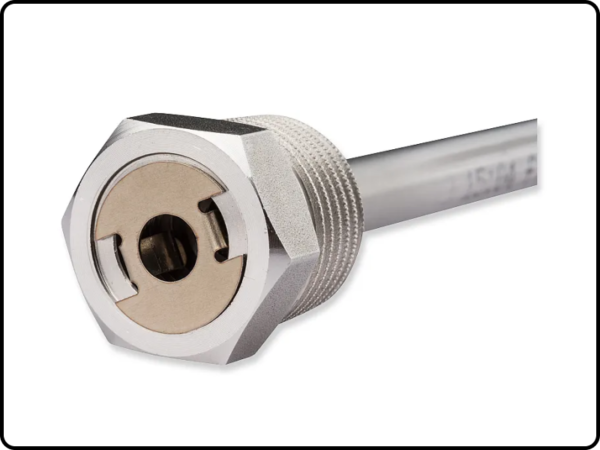

Immersion well
- Innovative mounting spring
Technical Data
- Measuring Range: Duct sensor (probe tip)-40…+110 °C (-40…230 °F)
- Measuring Range: immersion well (probe tip)-40…+130 °C (-40…+266°F)
- Accuracy active output±0.1 °C (±0.18 °F)
- Analogue output0-10 V or 4-20 mA (2-wire)
- Digital interfaceRS485 with Modbus RTU
- Protection classIP65 / NEMA 4X
- Supply24 V AC/DC
