Highly accurate and versatile
The sensing element is suitable for temperature measurement in a working range from -40 °C to 135 °C. The factory multi-point temperature adjustment ensures excellent measurement accuracy of up to ±0.2 °C. The outstanding measuring performance and reproducibility makes the sensing element the perfect solution for demanding measuring tasks.

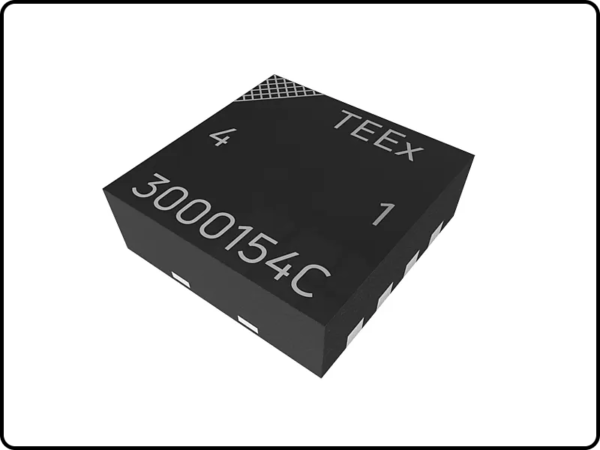

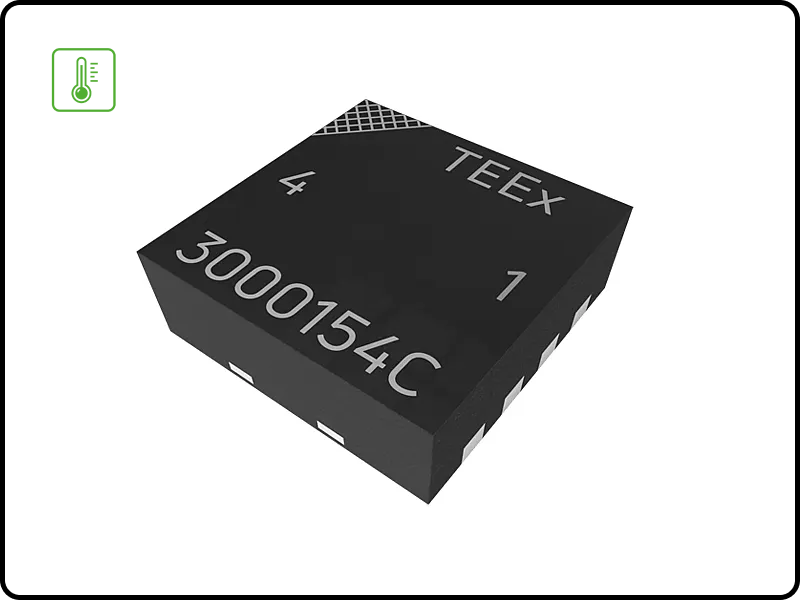

Easy-to-integrate DFN housing
The small dual flat no-leads (DFN) housing has a footprint of only 2.5 x 2.5 mm2 and can therefore be integrated into almost any application. The integrated pull-up resistors additionally facilitate the design-in. The sensing element requires a supply voltage of 2.35 – 3.60 V for operation.
Data communication via I²C interface interface
The I²C interface ensures interference-free data communication with the TEE501 and supports communication speeds of 100 / 400 / 1000 kHz. The measured values are available in 16-bit integer format and can be processed directly. Robust I²C interface communication is ensured by a checksum and glitch suppression.
8 individually adjustable I²C addresses make it possible to operate up to 8 sensing elements on one I²C bus.
Typical Applications
- Automotive industry
- Building automation
- Consumer electronics
- Home appliances
- Industrial automation
- Medical devices
- Smart home
- Wearable devices
- White goods
Technical Data
- Measuring range-40…135 °C (-40…275 °F)
- Accuracyup to ± 0.2 °C (0.36 °F)
- Digital interfaceI²C
- Supply2.35 – 3.6 V
Key Features
- Excellent measurement accuracy
- 8-pin DFN package
- I²C interface with direct 16 bit integer output
- I²C glitch suppression
- I²C interface with pin-selectable addresses
- Integrated I²C pull-up resistors
- Excellent repeatability
