Highly accurate and versatile
The sensing element is suitable for temperature measurement in a working range from -40 °C to 125 °C. The factory multi-point temperature adjustment ensures excellent measurement accuracy of up to ±0.2 °C. The outstanding measuring performance and reproducibility makes the sensing element the perfect solution for demanding measuring tasks.

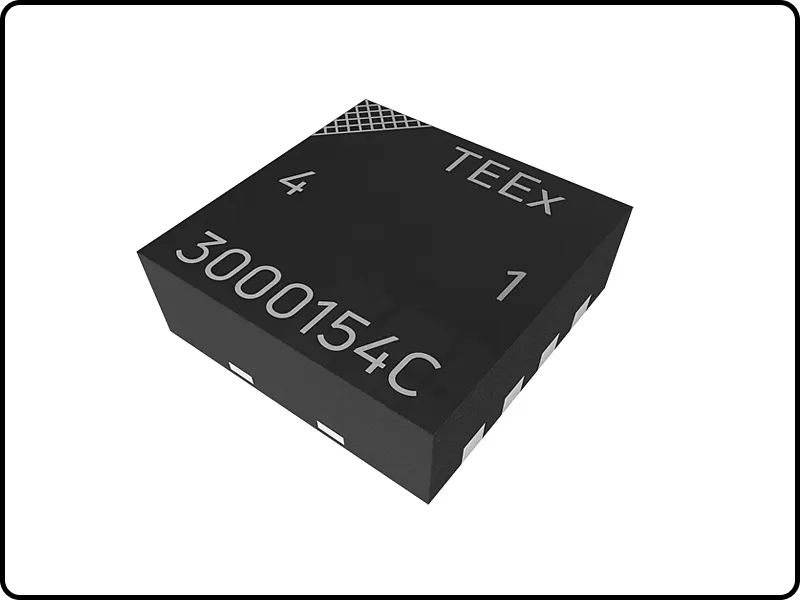

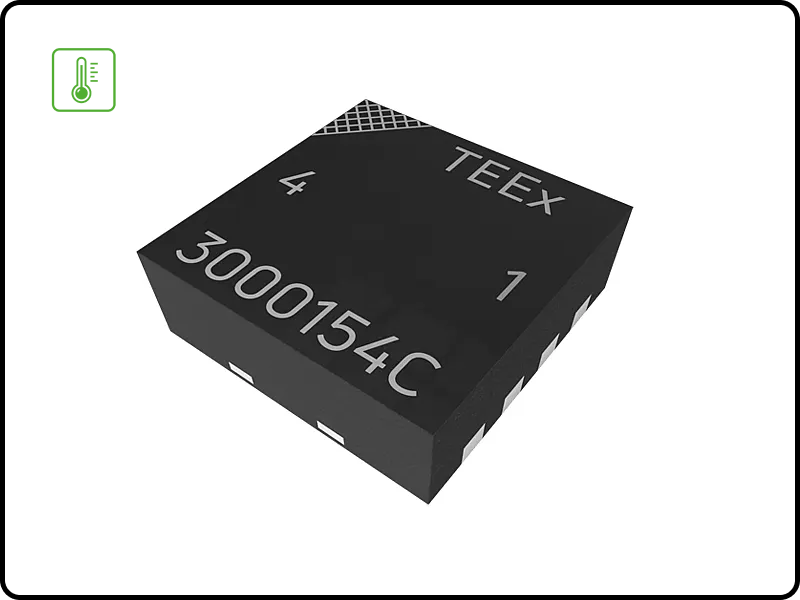

Easy-to-integrate DFN housing
The small dual flat no-leads (DFN) housing has a footprint of only 2.5 x 2.5 mm² and can therefore be integrated into almost any application. The sensing element requires a supply voltage of 2.35 – 3.60 V for operation.
Data communication via I²C interface
The I²C interface ensures interference-free data communication with the TEE301 and supports communication speeds of 100 / 400 / 1000 kHz. The measured values are available in 16-bit unsigned integer format. Robust I²C interface communication is ensured by a checksum and glitch suppression.
4 individually adjustable I²C addresses make it possible to operate up to 4 sensing elements on one I²C bus.
Typical Applications
- Automotive industry
- Building automation
- Consumer electronics
- Home appliances
- Industrial automation
- Medical devices
- Smart home
- Wearable devices
- White goods
Technical Data
- Measuring range-40…125 °C (-40…257°F)
- Accuracyup to ± 0.2 °C (0.36 °F)
- Supply Voltage2.35 – 3.6 V
- Digital interfaceI²C
- I²C pin selectable adressesup to 4
- Dimensions (L x W x H)2.5 x 2.5 x 0.9 mm (0.0984″ x 0.0984″ x 0.0354″)
Key Features
- Excellent measurement accuracy
- 8-pin DFN package
- I²C interface with 16 bit unsigned integer output
- I²C glitch suppression
- I²C interface with pin-selectable addresses
- Excellent repeatability
