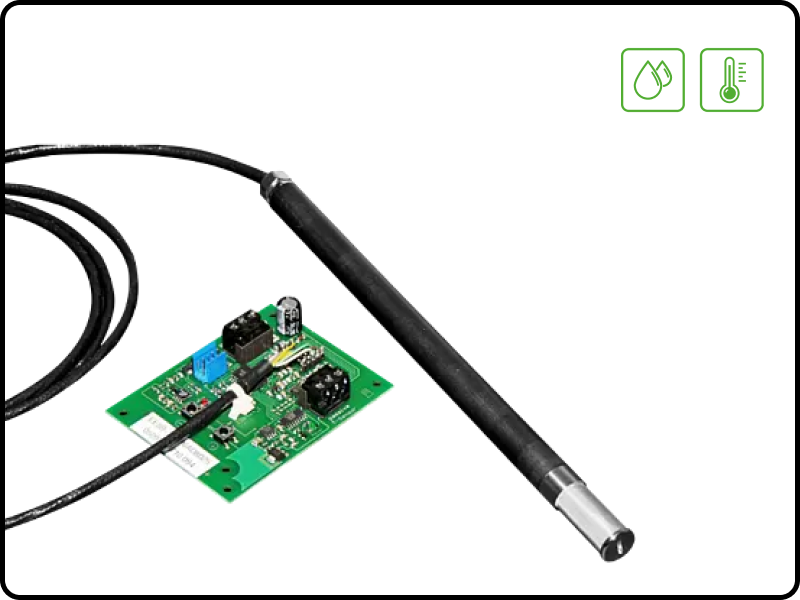

With a working range from -50 °C (-94 °F) up to 180 °C (356 °F) and various probe and cable lengths the EE99-1 module is suitable for a wide range of applications.
The E+E proprietary coating protects the sensing elements against corrosive and electrically conductive pollution, which leads to excellent long-term stability even in harsh environment.
Applications
- environmental chambers
- climate chambers
- test chambers
- dryers and humidifiers
- incubators
Technical Data
- Measuring range0…100% RH-50…180°C (-58…356°F), short term up to 200°C (392°F)
- Accuracy±1.3% RHT-passive (Pt100 DIN A or Pt1000 DIN A)
- OutputsRH: 4-20mA (3-wire)T: passive (3-wire connection)
- Supply10-35V DC or10-28V AC
Key Features
- highest measurement accuracy
- wide working range
- outstanding long term stability
- E+E proprietary coating against pollution and corrosion
- passive temperature sensor
- remote sensing probe up to 10m
- easy field calibration/adjustment
- easy installation and service
Datasheet
EE99-1 Datasheet
EE99-1 Manual
