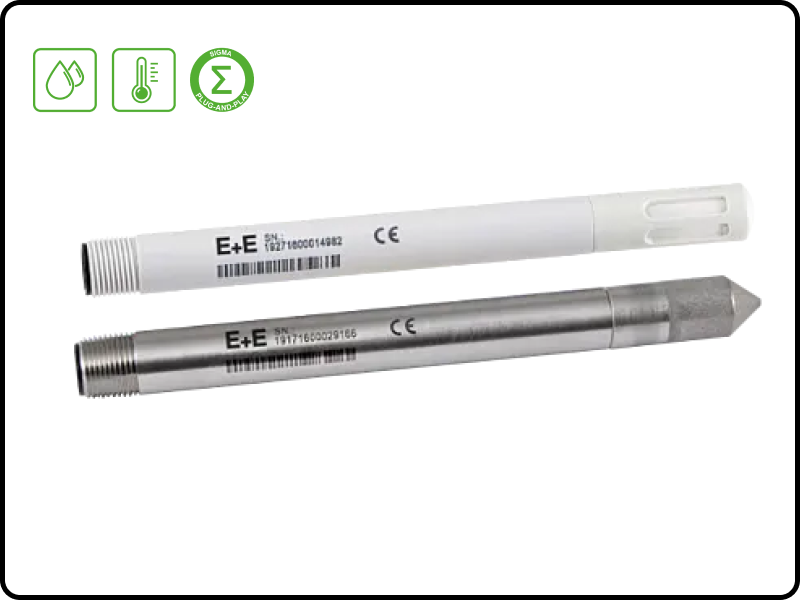

Excellent Measuring Performance
The high-end E+E humidity sensing element is protected by the E+E proprietary coating against corrosive and electrically conductive pollution. In combination with a robust sensing head and fully encapsulated electronics, the EE072 provides highly accurate and long-term stable measurements even in harsh and condensing environment.
Robust and Versatile

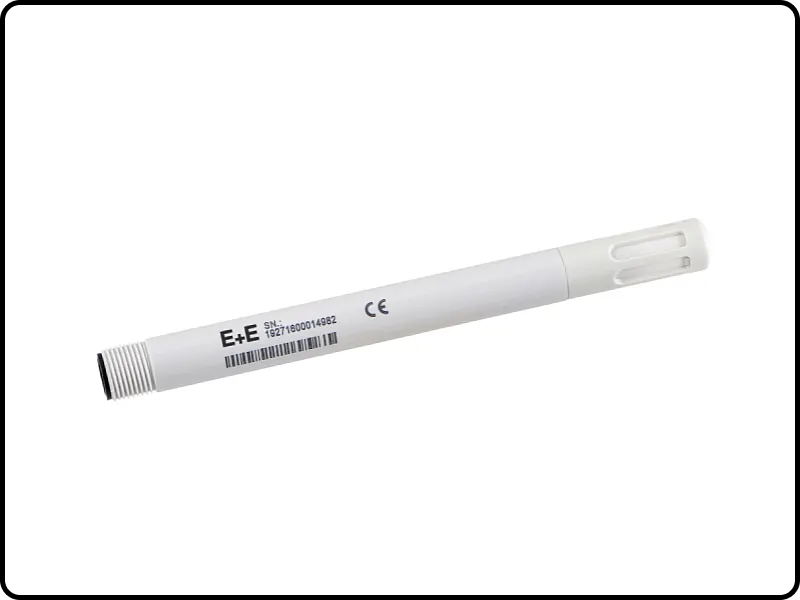

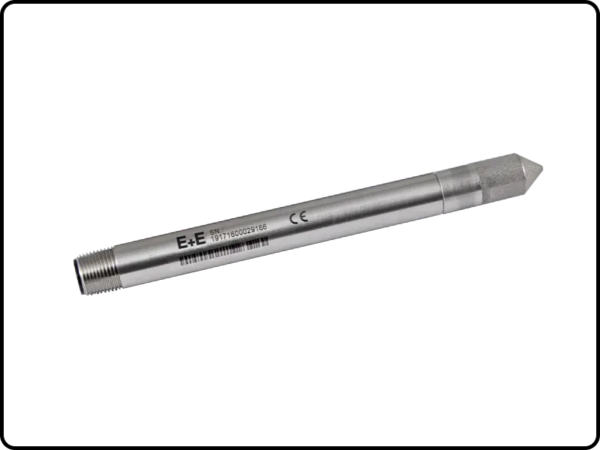

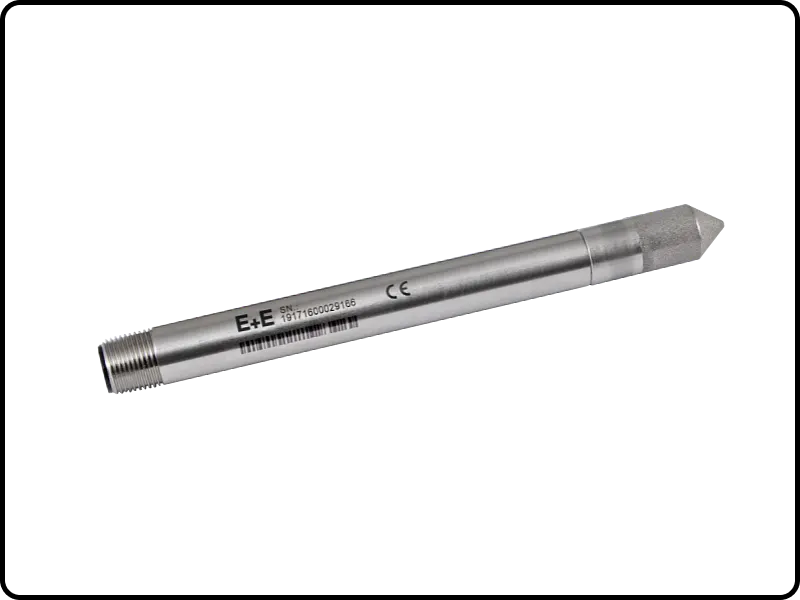

With its IP65 stainless steel or polycarbonate enclosure and the wide choice of filter caps, the EE072 tackles even challenging industrial applications.
Easy Intstallation
The M12x1 connector and the standard-compliant digital communication via Modbus RTU or CANopen facilitate the design-in of EE072 and minimize installation costs.
Configurable and Adjustable
The setup and adjustment of the EE072 can be easily performed with an optional adapter and the free PCS10 Product Configuration Software.

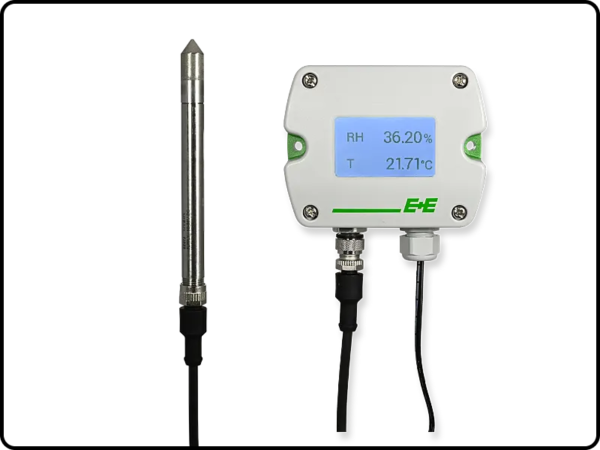

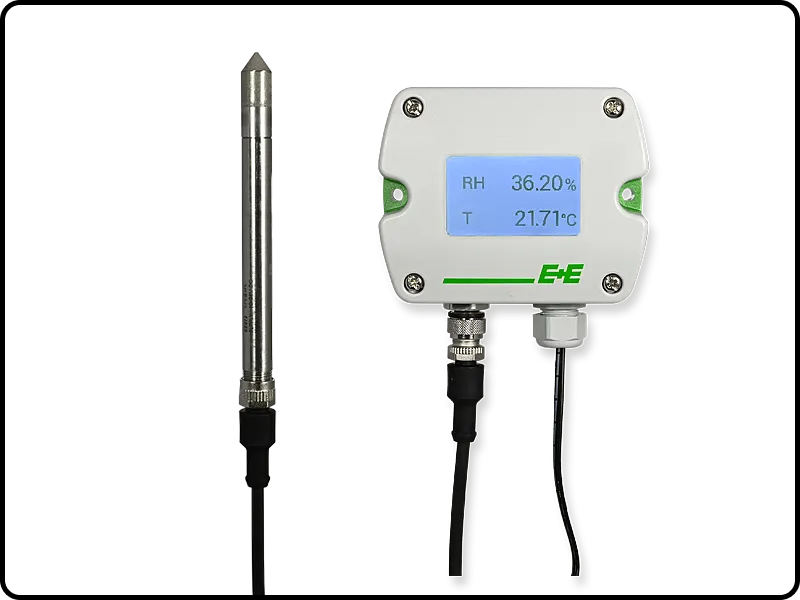

Sigma 05 – Modular Sensor Platform
The EE072 is compatible with the Sigma 05 host device of the E+E Modular Sensor Platform. Together they become a versatile, plugand-play RH / T modular sensor with analogue outputs and optional display. Besides EE072, Sigma 05 accommodates also other E+E intelligent sensing probes.
Technical Data
- Measuring range humidity0…100 % RH
- Accuracy humidity± 1.3 % RH
- Measuring range temperature-40…80 °C (-40…176 °F)
- Accuracy temperature± 0.1 °C at 20 °C
- OutputModbus RTU or CANopen
- Supply10…28 V DC
Key Features
- High RH & T accuracy
- Configurable pressure compensation parameter
- E+E proprietary coating
- Encapsulated electronics
- Free configuration software
Datasheet
