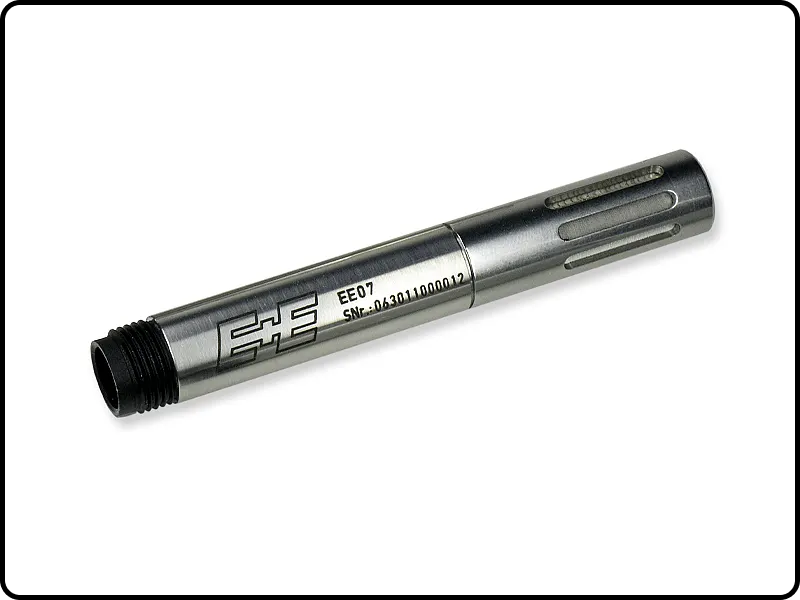

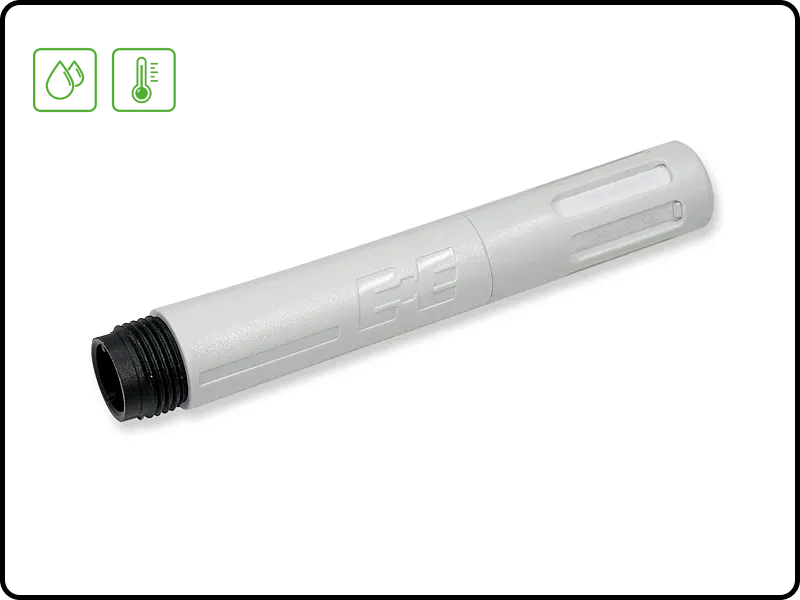

With the choice of appropriate filter cap EE07 is suitable for a variety of demanding applications. The compact design and M12 connector allow an easy system integration. For meteorology and other outdoor applications, the EE07 can be used with the optional radiation shield.
Probe setup and adjustment can be performed with an optional configuration kit.
With optional feature AF4 EE07 is optimized for very low power consumption, ideal for battery powered measurement devices.
Typical Applications
- Humidifiers and dehumidifiers
- Meteorology
- Building automation
- Artificial snow machines
- Data loggers, handheld meters
- Battery powered measurement devices
Technical data
- Measuring range0…100% RH-40…80 °C (-40…176 °F)
- Accuracy±2% RH±0.1 °C (±0.18 °F)
- Outputsdigital E2 (2-wire)
- Supply3.8 – 5.5V DC
Key Features
- Highest measurement accuracy
- Outstanding long term stability
- Wide working temperature range
- Temperature compensation
- Compact and easily interchangeable
- Humidity and temperature adjustable by the user
- Low power version EE07-xxAF4
Datasheet
EE07 Datasheet
Calibration Kit – User Guide
