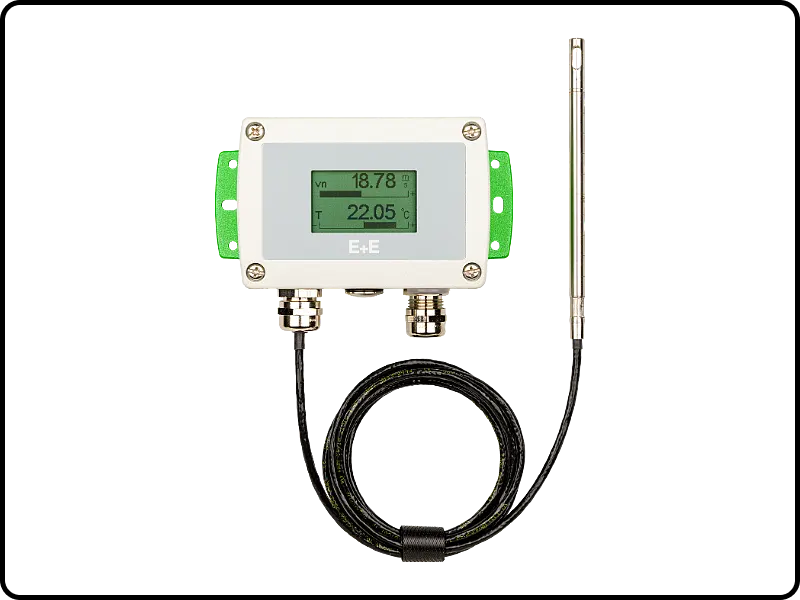

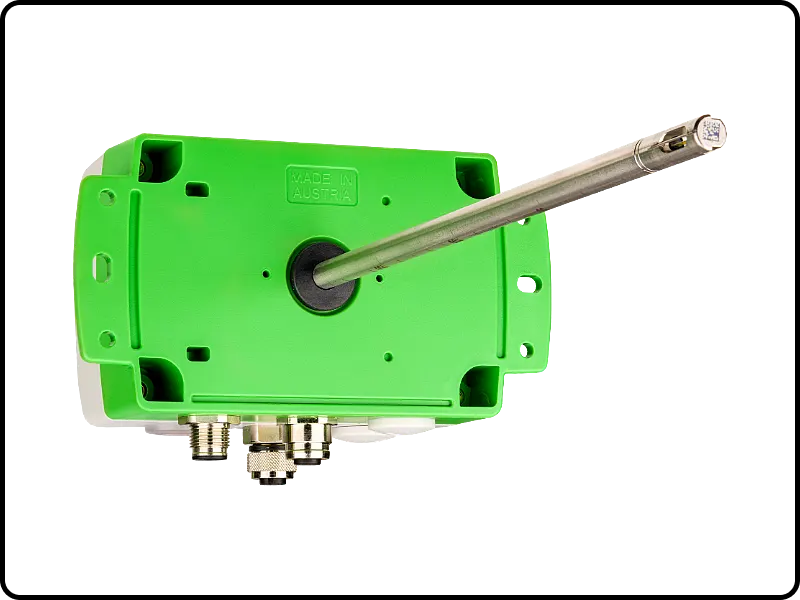

The optically and technically redesigned air and gas velocity sensor excels in accuracy, reliability, and simplified installation. Optimised for demanding industrial applications with a measurement range from 0 to 40 m/s (0 to 8 000ft/min) and temperatures from -40 to +140 °C (-40 °F to 284°F), it is suitable for a wide range of uses – from pharmaceutical production to process monitoring in 3D printing. The optional external pressure sensor compensates for variations in ambient pressure. Thanks to its robust ceramic sensing element protected by a stainless steel probe head and a specialised coating, the AVS701 delivers stable measurement results even under corrosive and extreme conditions, significantly reducing downtime and lifecycle costs. Efficiency increases in process costs and quicker setup times by 60% make the AVS701 the best choice in its performance class.
Typical Applications
- Metal additive manufacturing (3D printer)
- Monitoring of incoming and outgoing air for HVAC controls
- Filter monitoring and laminar flow control in cleanrooms and labs
- Exhausts, fume hoods and glove boxes in the pharmaceutical, food processing and semiconductor industries
- Volumetric flow of supply air for combustion control
- Air conveying systems
- Wind tunnels and climate simulators
Technical Data
- Air velocity measuring range: 0…2 m/s (0…400 ft/min)0…15 m/s (0…3 000 ft/min)0…40 m/s (0…8 000 ft/min)
- Accuracy air velocity: 0.06…2 m/s: ±0.03 m/s0.15…10 m/s: ±(0.1 m/s + 1% of mv)0.2…40 m/s: ±(0.2 m/s + 1% of mv)
- Temperature measuring range: -40…+140 °C (-40…+284 °F)
- Accuracy (T): ±0.5 °C (±0.9 °F)
- Power supply class III: 24 V DC ±20%
- Protection rating: IP65 / NEMA 4X
Key Features

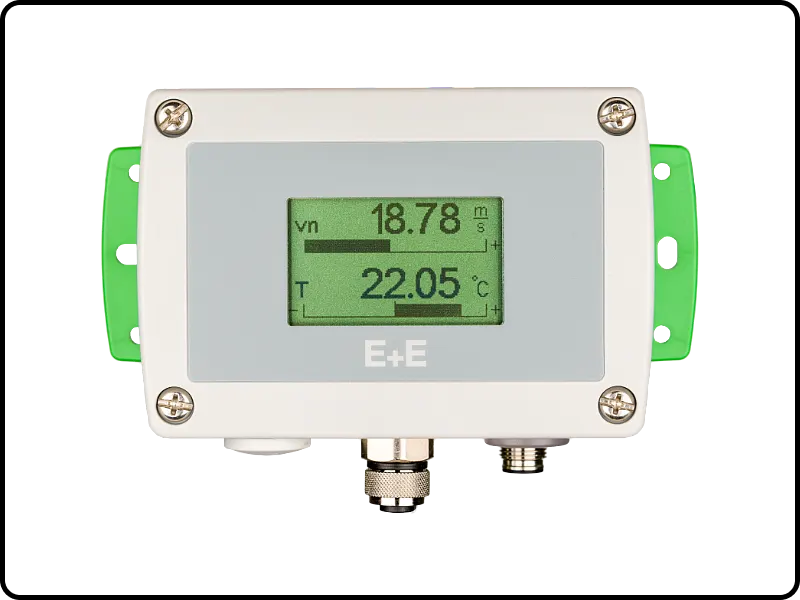

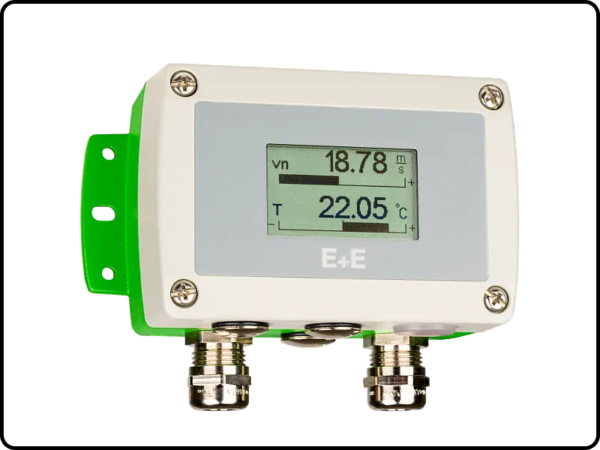

- Shows up to 3 measurands simultaneously
- Freely selectable layout and measurands
- Linear gauges for quick perception
- Connector for external pressure probe (optional)
- Realtime pressure compensation
- IP65 protection rating
- Pressure-tight models up to max. 10bar
- 2 freely scalable analogue outputs, current / voltage
- Short-term power supply via USB
