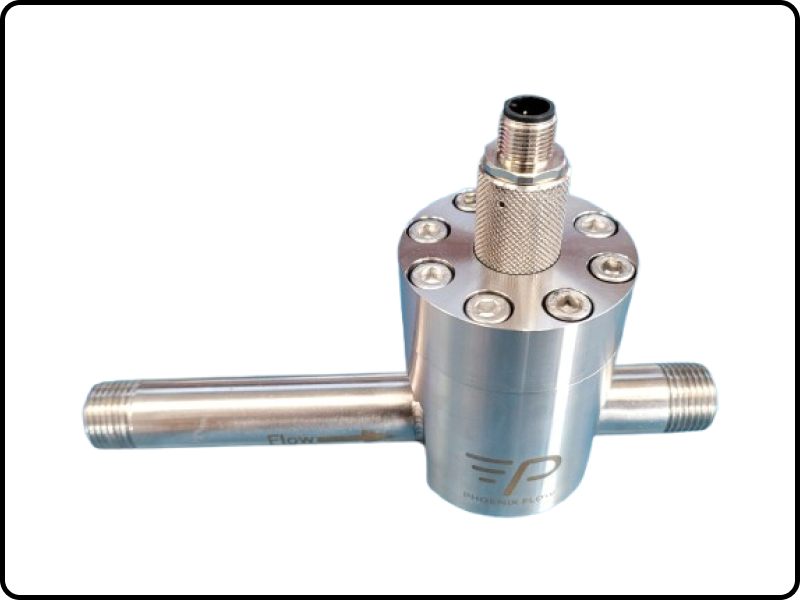

Pelton Wheel Flowmeters – High Pressure – High Accuracy Low Flow Series LMX
Specifications
- Flow ranges down to 4.0 ml/min (0.0011 gpm)
- Accuracy: ±2.0% of actual reading for 10 to 100% of range
- Repeatability: ±0.2% of actual reading for 10 to 100% of range
- Pressure rating: 30, 100 and 230 bar (435, 1450 and 3336 psi)
- Temperature rating: -20 to +100 °C (-4 to 212 °F)
- Output: NPN, PNP or TTL
- Body: 316L Stainless Steel with PFA rotor and sapphire bearings
- Fiitings: 8 mm OD (LMXS) or 1/2″ NPT/BSP male (LMX)
- Connection: 4 pin M12 socket, matching plug wiht 1 meter (3 feet) fo cable
- Protection class: IP68 (> NEMA4X)
Instrumentation

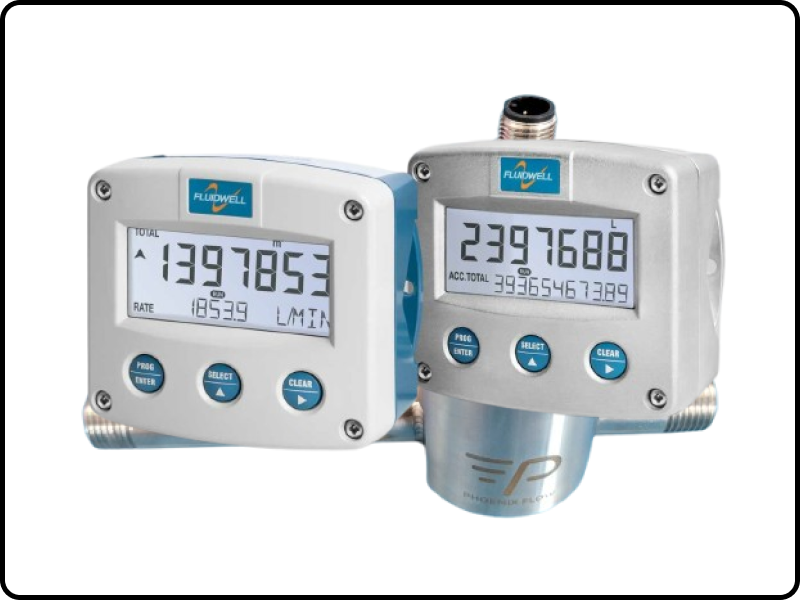

Instrumentation for Pelton Wheel Flowmeters Flow Rate and Totalizer
Specifications
- Flow rate and totalizer head or remote mounted
- Pulse input from LMX flowmeter
- Analogue outputs
- Linearization for extreme low flows
- Display integral
- Intrinsically safe versions
- Hart, Modbus, Fieldbus, etc. optional
- Battery, loop or main powered
- Protection class IP66 (NEMA4X) or higher
