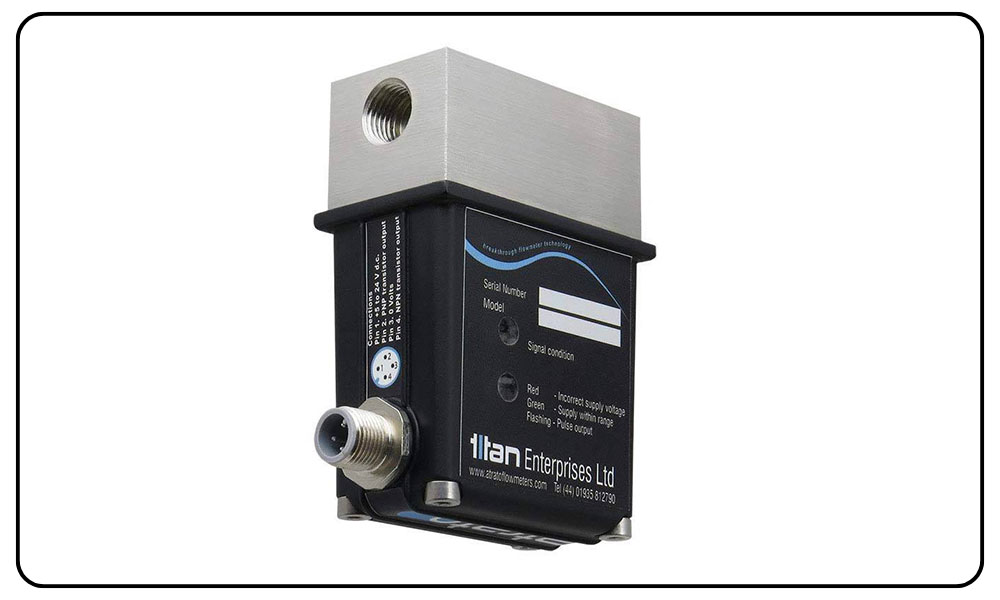

The Process Atrato® is based on our standard, wide ranging, Atrato® ultrasonic flow meter but packaged to address the more challenging industrial process and control environment. The body is 316 stainless steel, rated at 20 bar and the electronics are built-in and sealed to IP65. The only other wetted materials are PEEK and the customer’s choice of elastomers. The Process Atrato® is calibrated with a pre-set ‘K’ factor so all meters of the same flow range are fully interchangeable simplifying assembly and set-up procedures for OEM manufacturers. There are two frequency outputs, one PNP and NPN. Two multicolour LEDs indicate signal strength, power malfunctions and pulse outputs. Electrical connections are through a standard M12, four pin, sensor connector. Four flow ranges are available from 2 ml/min to 15 litres per minute, accuracy is ±1% over the whole flow range.

Please enable JavaScript in your browser to complete this form.

Product Name

Flow Range *--- Select Choice ---0.002 – 0.5 L/Min0.01 – 1.5 L/Min0.03 – 5 L/Min0.1 – 15 L/Min

Seal Material *--- Select Choice ---VitonNitrileEPDMSiliconeKalrez®

Process Fitting Size *--- Select Choice ---1/4”

Process Fitting Type *--- Select Choice ---¼” BSP-F¼” NPT-F

Tube Assembly Materials *--- Select Choice ---PEEK316 St St

Quantity *

Name *

Email *

Quantity Process Email

Message *

Request Quote
