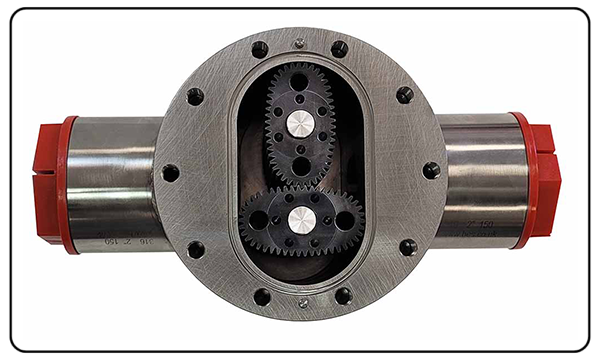

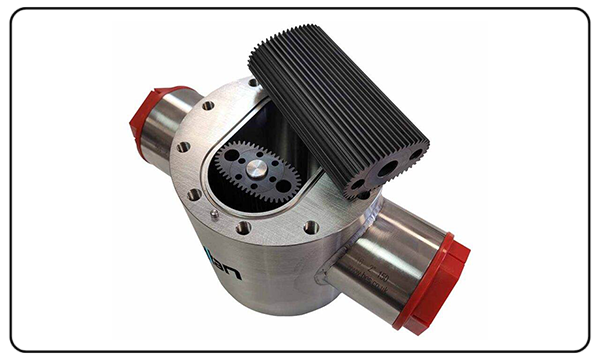

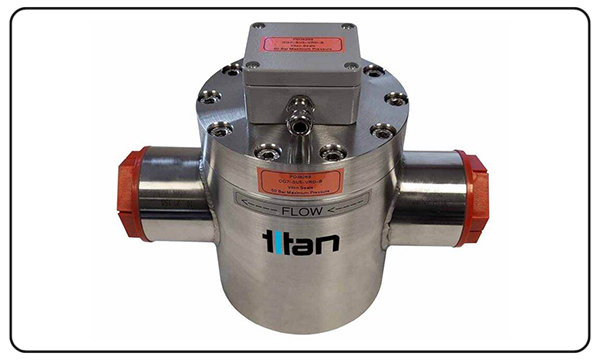

The compact OG7 oval gear liquid flowmeter gives high performance and excellent chemical resistance for high viscosity liquids up to 1000cSt. This oval gear flow sensor has a standard flow range from 5 to 500 L/min on 30 cSt oil and 20 to 500 L/min on water-like liquids. The standard 50bar high pressure model is 316 Stainless Steel with Viton™ ‘O’ ring seal with a standard 2″ process fitting size. For OEM applications other alternatives are available, including high pressure options and manifold mountings. For hazardous areas either the Namur sensor or the reed switch (simple apparatus) may be used.
