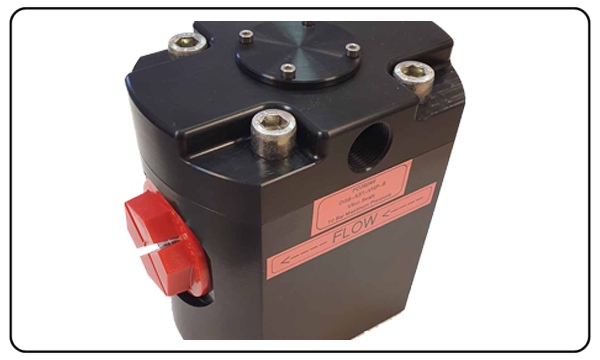

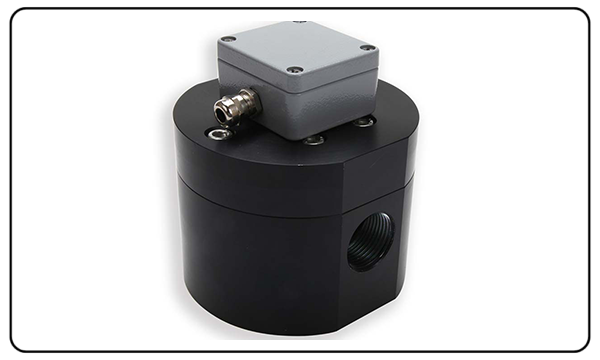

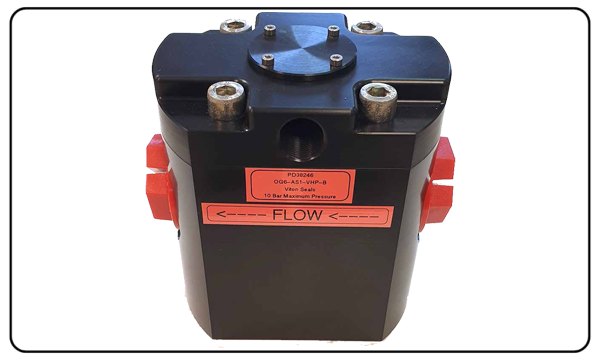

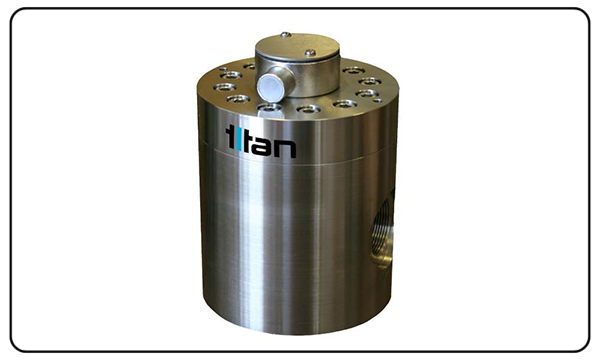

The compact OG6 oval gear liquid flowmeter gives high performance and excellent chemical resistance for high viscosity liquids up to 1000cSt. This oval gear flow sensor has a standard flow range from 2 to 200 L/min on 30 cSt oil and 10 to 200 L/min on water-like liquids. With variable high pressure models in standard 316 Stainless Steel or Aluminium with Viton™ ‘O’ ring seal and a standard 1½” process fitting size, options for senors suitable for hazardous areas are available. For OEM applications other alternatives are available, including high pressure options and manifold mountings.

Please enable JavaScript in your browser to complete this form.

Product Name

Body Material *--- Select Choice ---316 St St (50 bar standard)Aluminium (10 bar max)

Temperature Rating *--- Select Choice ---80°C / 158°F100°C / 212°F150°C / 300°F

Pressure Rating *--- Select Choice ---50 bar 750 PSI (St St)10 bar 150 PSI (Al)400 bar 5880 PSI (St St)

Seal Material *--- Select Choice ---Viton™NitrileEPDMPTFE (50 bar max)Kalrez®

Detector Type *--- Select Choice ---Hall effectReed switch & ResistorNamurReed switch (hazardous area)

Process Fitting Size *--- Select Choice ---1½” BSP (OG6 standard)

Process Fitting Type *--- Select Choice ---BSP-FNPT-F

Temperature Body Fitting
